Model No.: ZGJ-11800
Brand: gaode
Characteristic: Other
Applicable Industry: Building Material Shops, Manufacturing Plant, Construction Works
Out-of-warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Germany, Viet Nam, Brazil, Russia, Thailand, Australia
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Germany, Viet Nam, Russia, Argentina
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Components: Plc, Motor, Pump
Status: New
Place Of Origin: China
Warranty Period: 1 Year
Packaging: FILM PACKAGE
Productivity: 100 set/year
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 100 SETS/YEAR
Certificate: CE SGS ISO9001
HS Code: 8471819000
Port: SHANGHAI,NINGBO,NANJING

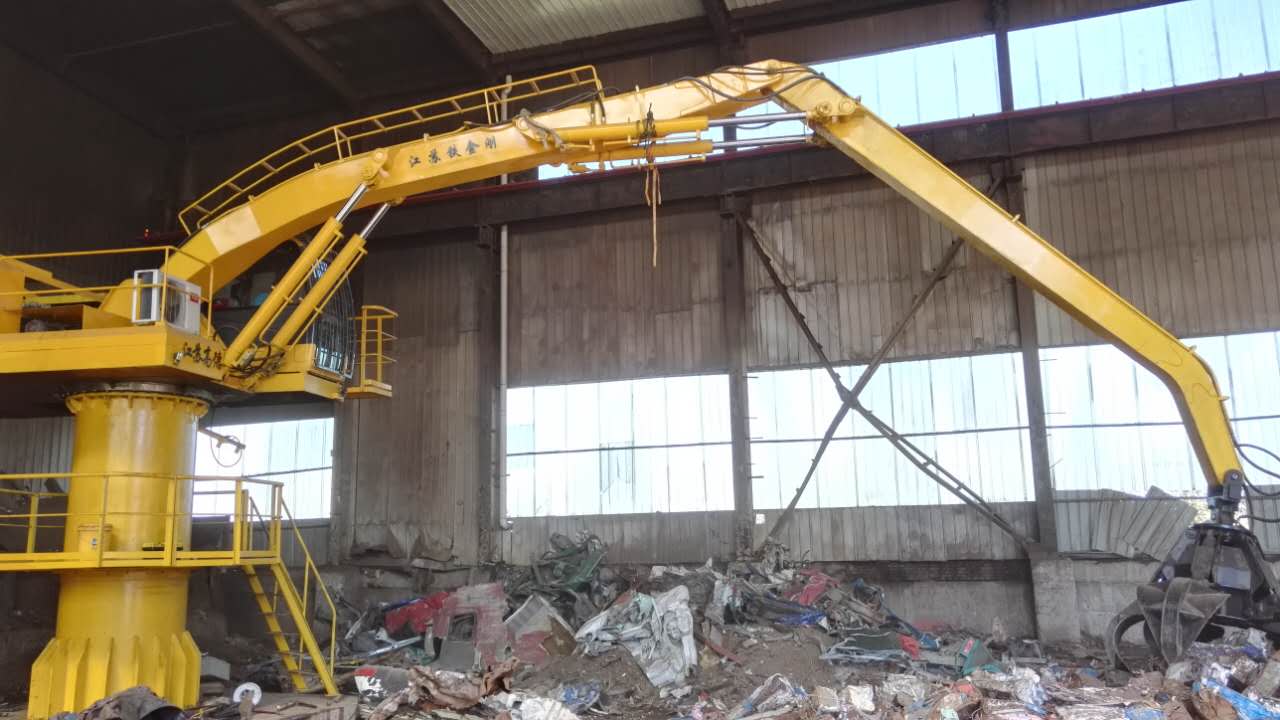

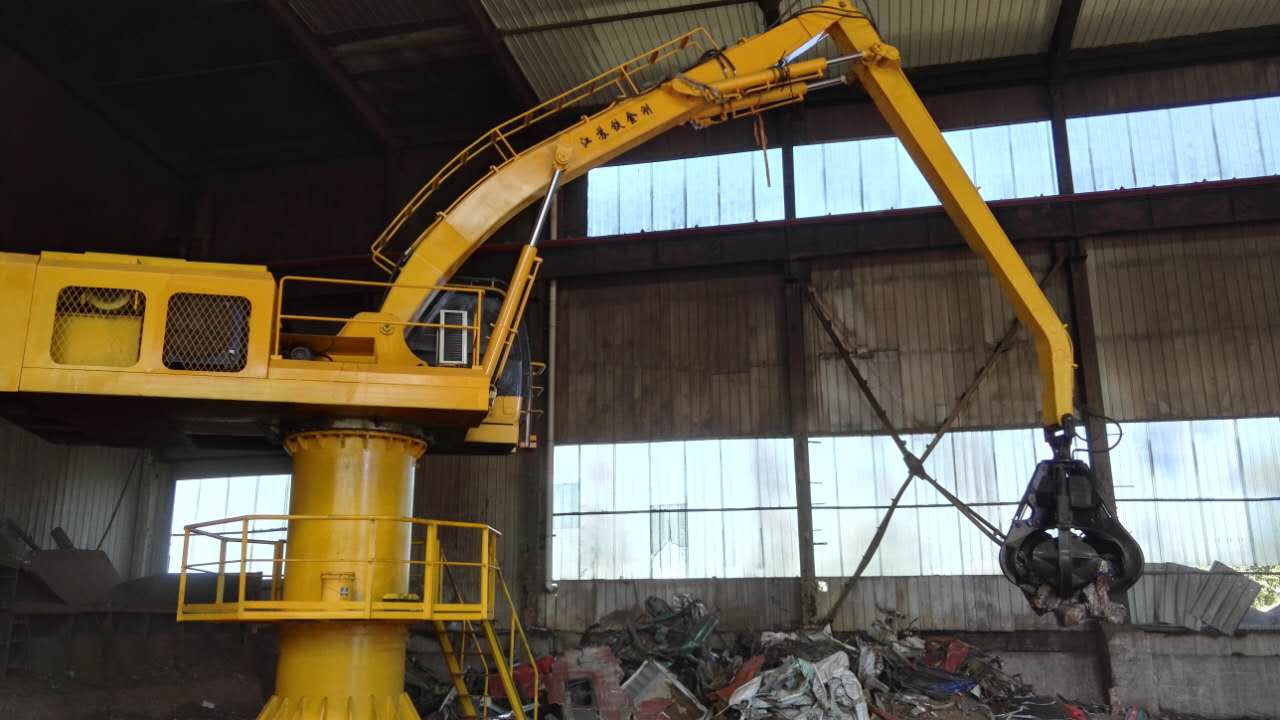

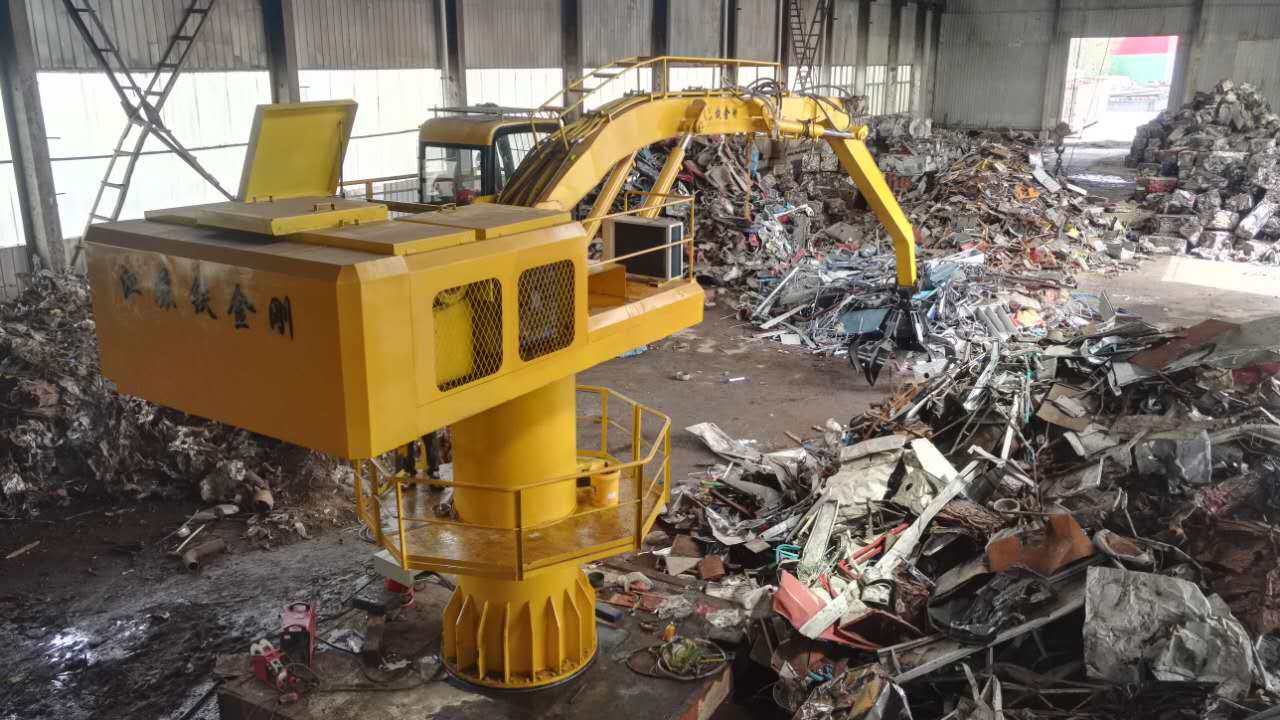

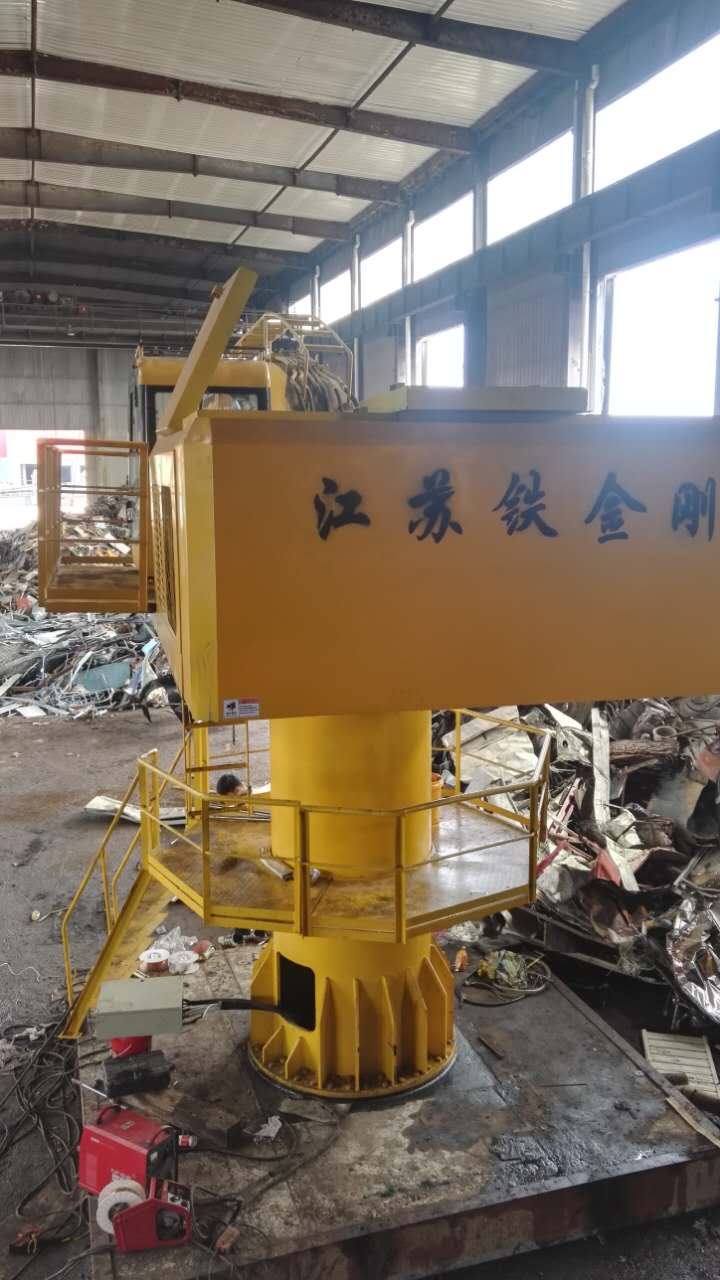

ZGJ Series Fixed Type Grapple FEATURES
●Low input cost.
● The operating radius can be customized according to the site requirements to meet the needs of different venues.
● Power system provides power, energy saving and environmental protection, low cost.
● The boom and grab are complete in specifications, meeting the requirements of various operations of the steel grabber.
● Hydraulic system for increased product performance and operational reliability.
● Compact internal hydraulics with imported fittings for high safety, stable operation and long service life.
● Save labor and increase productivity.
● Equipped with a high-speed rotating tower, which can directly feed the crushing line, eliminating the conveyor belt.
| Model | Boom length | Effective operation radius | Grab height | Grab weight | Power | Cab height |
| (mm) | (mm) | (mm) | (ton) | |||
| ZGJ-8500 | --- | 8500 | 8500 | 0.5-2.8 | 30KW+3KW | Optional |
| ZGJ-9800 | 6500 | 9800 | 10200 | 1-2.8 | 22KW*2 | |
| ZGJ-11800 | 7600 | 11800 | 12500 | 1-2.8 | 22KW*2 | |
| ZGJ-13800 | 9600 | 13800 | 14500 | 1-2.8 | 60KW | |
| ZGJ-15800 | 9600 | 15800 | 18500 | 1-2.8 | 75KW |
Product Categories : Fixed Grab Machine
